UAV Drone 10km HDMI SDI COFDM Mini COFDM Transmitter
Description
HMUA05 mini COFDM transmitter adopts high-efficiency and innovative H.264 compression coding method, integrated high-brightness, low-power OLED display control interface. It is also an highly integrated digital image transmission device of digital modulation, audio and video digital compression.
This device is small in size and light in weight, and can transmit high-quality full HD 1080P images and sounds in an environment where buildings are blocked or in high-speed movement.
Key Features:
1 HD-SDI,HDMI,SD CVBS port are available
2. Integrated desgin,small size,light weight and high reliability
3. Military standards
4. Digital panel operatation and display, easy for use

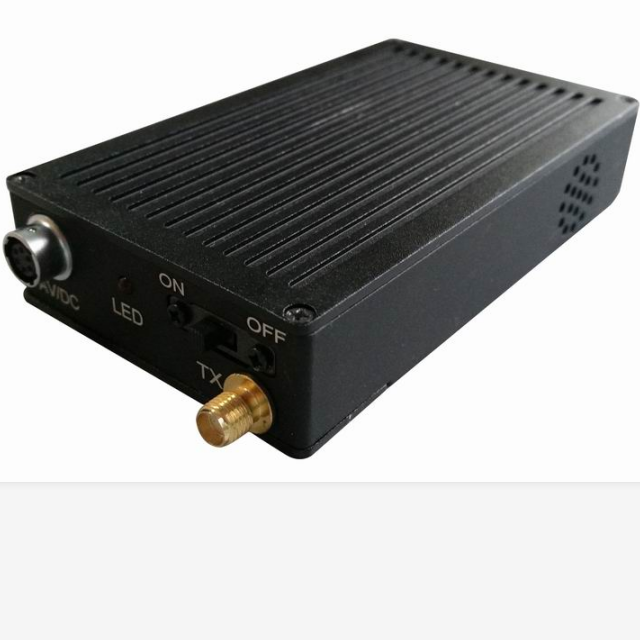

Product Picture:
Parameter
| General Part: |
| Working Frequency: | 70MHz-2.5GHz,(Other frequency can be customized) |
| Output Power: | 0.1～0.5W(adjustable) |
| Modulation: | COFDM 2K QPSK/TDS-OFDM |
| Channel Bandwidth | 2M-8M(Step 1M adjustable; full HD adjusted to 8M) |
| Code Stream | 0.8Mbps～10Mbps |
| End-to-end Delay | 40ms |
| Error Rate: | ≤10-6 |
| Encryption: | AES/ABS(128bit) |
| FEC: | Viterbi (1/2,2/3,3/4) |
| Guard Interval: | 1/32,1/16,1/8,1/4 |
| Power Supply | DC7.2-14.8V |
| Power Consumption | 7.5W |
| Transmit Distance | LOS for UAV: more than 10KM;NLOS 1KM in city |
| Audio&Video Part: |
| AV Data Format: | MPEG-2 ,MPEG-4@ ML 4:2:0 |
| Video Compression: | Conform to H.264,MPEG-2,MPEG-4 |
| Video Input: | HDMI |
| Resolution: | HDMI:Support HD1080 60P；1080 50P；1080 30P；1080 25P；1080 24P；1080 60I；1080 50I；720 60P；720 50P |
| Others: |
| RF Interface: | SMA Female |
| Antenna: | Hand held antenna |
| Battery: | Without |
| Weight: | 138g(without battery) |
| Size: | 103*58*20mm(L × W ×H) |
| Working Temperature: | -30～70℃ Relative humidity :90％ |
| Reserve Temperature: | -40～80℃; Relative humidity: 90％ |
